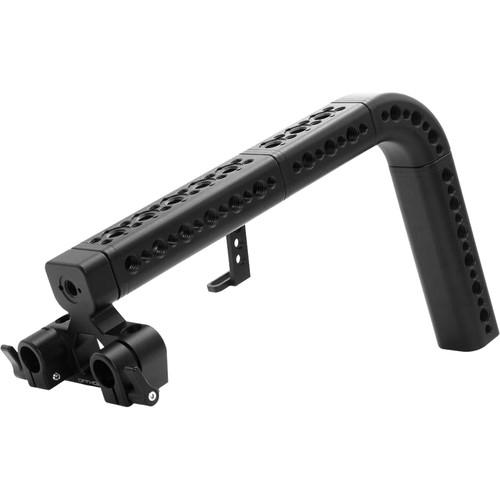

User Manual for Teradek OMOD | AKS Deluxe Handle Kit Click to enlarge the picture
Contents of the user manual for the Teradek OMOD | AKS Deluxe Handle
- Product category: Handles & Grips Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Handles & Grips
|
User manual for the Teradek OMOD | AKS Deluxe Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description Get a firm grip on your camera with the Teradek OMOD | AKS Deluxe Handle Kit. Consisting of the 15mm Rod Clamp Riser, two long extensions, a short extension, and a right-angle extension, you can build a handle that goes around the back of your camera for serious gripping and rigging options. A Back Riser bracket is included as well for extra support. Additional extensions can be attached to the Handle Kit for further customization. - OMOD | AKS 15mm LWS Rod Clamp Riser for Top Handle The Teradek OMOD | AKS 15mm LWS Rod Clamp Riser for Top Handle lets you build a robust handle that connects to the top of your camera. The 3/8"-16 threaded hole with registration pins accepts separately available short or long handle extensions. 15mm rods can be clamped in, and when used on a DSMC2 camera, they will be set at the correct height conforming with the 15mm LWS standard. UPC: 705911773257
- OMOD | AKS Back Riser for Top Handle The Teradek OMOD | AKS Back Riser for Top Handle enables longer top handle configurations by acting as a brace to add support at the rear of the camera. UPC: 705911773264
- OMOD | AKS Top Handle Short Extension The Teradek OMOD | AKS Top Handle Short Extension allows you to build out a cinema-grade top handle. This extension is 2.9" long for creating a low-profile handle or adding small increments to your existing handle. Using 3/8"-16 threads, multiple extensions can be linked together, starting at the LWS Riser, for custom configurations. Many of the 3/8"-16 threads, in particular, have ARRI registration notches for compatibility with ARRI rig accessories. UPC: 705911773271
- OMOD | AKS Top Handle Long Extension The Teradek OMOD | AKS Top Handle Long Extension allows you to build out a cinema-grade top handle. This extension is 4.7" long for creating a longer handle or adding length to an existing handle. Using 3/8"-16 threads, multiple extensions can be linked together, starting at the LWS Riser, for custom configurations. Many of the 3/8"-16 threads, in particular, have ARRI registration notches for compatibility with ARRI rig accessories. UPC: 705911773288
- OMOD | AKS Top Handle Right Angle Extension The Teradek OMOD | AKS Top Handle Right Angle Extension allows you to build out a cinema-grade top handle. This extension allows you to expand your top handle down the back of your camera setup by introducing a right-angle bend. Using 3/8"-16 threads, multiple extensions can be linked together, starting at the LWS Riser, for custom configurations. UPC: 705911773295
In the Box Bundle Items OMOD | AKS 15mm LWS Rod Clamp Riser for Top Handle ycxvqddsbcbudycaeauwawdfxzydueufwtqxu OMOD | AKS Back Riser for Top Handle OMOD | AKS Top Handle Short Extension 2 x OMOD | AKS Top Handle Long Extension OMOD | AKS Top Handle Right Angle Extension
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek OMOD | AKS Deluxe Handle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - OMOD | AKS 15mm LWS Rod Clamp Riser for Top Handle
| | | Box Dimensions (LxWxH) | 7.3 x 5.35 x 1.55" | - OMOD | AKS Back Riser for Top Handle
| | | Box Dimensions (LxWxH) | 4.0 x 1.3 x 0.8" | - OMOD | AKS Top Handle Short Extension
| Length | 2.9 / 7.4 cm | | Weight | 4 oz / 113 g | | | | Box Dimensions (LxWxH) | 3.1 x 2.1 x 0.7" | - OMOD | AKS Top Handle Long Extension
| Length | 4.7 / 11.9 cm | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 5.3 x 2.4 x 0.2" | - OMOD | AKS Top Handle Right Angle Extension
| Length | Not specified by manufacturer | | Weight | 4.8 oz / 136 g | | | | Box Dimensions (LxWxH) | 4.5 x 1.5 x 0.6" |
